Ethernet magnetics for Orin AGX using UPHY and AQR113C

[becky2]

Can you please share with me the reference design for the ethernet magnetics for Orin AGX if using the AQR113C for 10GbE speeds?

[becky2]

I think I found the answer:

[becky2]

Can you confirm? I propose using the HX5062NL, can you confirm if the approved magnetics when using the suggested AQR113C for 10GbE speeds is like this Pulse Electronics HX5062NL https://productfinder.pulseeng.com/product/HX5062NL

[Trumany]

Please refer to the SCL in DLC for supported devices. For other ones that are not in the SCL, customer is responsible for handling that.

[becky2]

@becky2

AQR113C

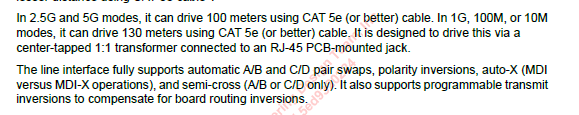

thank you. For AQR113C, the chip listed in the SCL, i found in the AQR113C’s reference design that the magnetics look like this:

I will begin searching for a magnetics chip of this format. I’m using a rugged RJ45 connector, and none of those that I have found have integrated magnetics, so I need to use a separate magnetics chip.

Thank you for your help.
