Is it possible to get a rough picture or detailed processor layout ?
such as where is the cache, SMs, …
G80 chip layout…
Thanks ~
Is it possible to get a rough picture or detailed processor layout ?
such as where is the cache, SMs, …
G80 chip layout…
Thanks ~
I “binged” for it and found this (if you don’t know this yet, Microsoft calls it the sound of found: http://www.bing.com/?mkt=en-US )
http://news.mydrivers.com/img/20090523/05015225.jpg
The G200 on the site is prettier and more colourful though (found on page 3 below)
This page has more nVidia die shots than you’d ever want. It’s pure GPU porn, naked and uncensored - to die for (hahaha, bad pun)
http://news.mydrivers.com/1/135/135423.htm
Because some of you might not find the “next page” link, here’s page 2 and 3
http://news.mydrivers.com/1/135/135423_1.htm
http://news.mydrivers.com/1/135/135423_2.htm
Christian
And just to nitpick: The G80 was used only on the 8800 GTX, early 320/640 MB 8800 GTS, and the Tesla C870 cards. 8800 GT was the G92 chip.

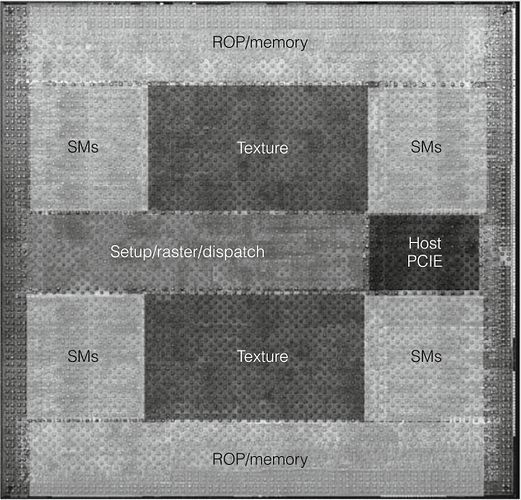

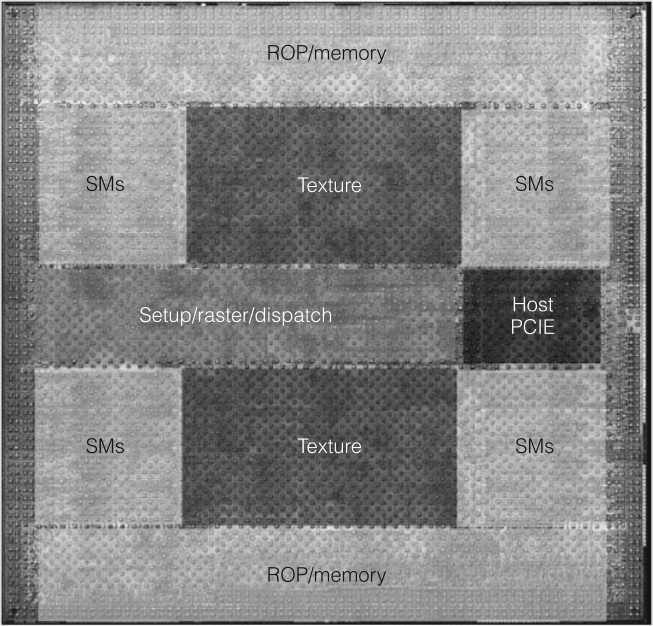

Binging for the G92 came out empty so far… ;-( But I found a G80 functional diagram which I inserted above
Bing for “GTX 280M” instead. It is based on a G92b (55nm):
