how to get gmsl sensor yuv data

when i use driveworks-0.2.0 , i want to fwrite one gmsl yuv frame , so i set the onData member of serializerParams
and then pass it to the function interface: dwSensorSerializer_initialize

but what i set the function onData doesn’t work.

so I want to ask how i get the gmsl sensor yuv data (use the origin camera)

Helo dota_black,

You can get yuv data with DriveWorks tool

cd /usr/local/driveworks-0.2.0/tool ./recorder
Then will create “recorder-config.json” file.
Please change camera parameters in recorder-config.json like below.

{
comments": [
“To record raw camera use output-format=raw.”,
“To record camera at a different framerate use serial-framerate=.”
],
“path”: “.”,
“camera”: {
“write-file-pattern”: "video
*.h264”,
“sensors”: [
{
“protocol”: “camera.gmsl”,
“params”: "camera-type=c-ov10640-b1,csi-port=ef,camera-count=4, output-format=yuv"
}
]
},

hello
thanks your answer firstly! the way you told me may not suit our problem. because we can’t get the source code of
the dw’s tool.we want to use the dw layer to transplant our code . but in driveworks-0.2.0/samples/src/sensors/camera_gmsl/,we can’t get the right png ( the color is strange green)。 and we use dwSensorSerializer_initialize and set
serializerParams, it doesn’t work.

// image API translator
    dwImageStreamerHandle_t nvm2gl = DW_NULL_HANDLE;
    dwImageStreamer_initialize(&nvm2gl, DW_IMAGE_NVMEDIA, DW_IMAGE_GL,
                               DW_IMAGE_RGBA, DW_TYPE_UINT8, cameraWidth, cameraHeight, sdk);

    dwSensorSerializerHandle_t serializer;
    dwSerializerParams serializerParams;
    serializerParams.parameters = "";
    bool recordCamera = !g_arguments.get("write-file").empty();
    if (recordCamera) {
        std::string newParams = "";
        if (g_arguments.has("serialize-type")) {
            newParams +=
                std::string("format=") + std::string(g_arguments.get("serialize-type"));
        }
        if (g_arguments.has("serialize-bitrate")) {
            newParams +=
                std::string(",bitrate=") + std::string(g_arguments.get("serialize-bitrate"));
        }
        if (g_arguments.has("serialize-framerate")) {
            newParams +=
                std::string(",framerate=") + std::string(g_arguments.get("serialize-framerate"));
        }
        newParams += std::string(",type=disk,file=") + std::string(g_arguments.get("write-file"));

        serializerParams.parameters = newParams.c_str();
        <b>serializerParams.onData     = save;</b>

        dwSensorSerializer_start(serializer);
    }

and i add the save’s refrence

void save(const uint8_t *data, size_t size, void *userData)
{
    std::cout << "----------------------------------------------------\n";
}

but i can see the print log in console.

the file is in the file is in driveworks-0.2.0/samples/src/sensors/camera_gmsl/main.cpp

Hello dota2_black,

Looking at the code, you are trying to provide a callback by specifying
serializerParams.onData = save; // original code this is a nullptr

The main problem is, you are not calling
dwSensorSerializer_initialize(&serializer, &serializerParams, cameraSensor);

therefore, the callback is not going to be registered.

However, for the purpose of saving an image, what you can do is the following as well which is further down in the same file (~/camera_gmsl/main.cpp)

// take screenshot if requested
if (gTakeScreenshot)
{
NvMediaImageSurfaceMap surfaceMap;
if (NvMediaImageLock(rgbaImage->img, NVMEDIA_IMAGE_ACCESS_READ, &surfaceMap) == NVMEDIA_STATUS_OK)
{
char fname[128];
sprintf(fname, “screenshot_%04d.png”, gScreenshotCount++);
lodepng_encode32_file(fname, (unsigned char*)surfaceMap.surface[0].mapping, rgbaImage->prop.width, rgbaImage->prop.height);
NvMediaImageUnlock(rgbaImage->img);
gTakeScreenshot = false;
std::cout << "SCREENSHOT TAKEN to " << fname << “\n”;
}else
{
std::cout << “CANNOT LOCK NVMEDIA IMAGE - NO SCREENSHOT\n”;
}
}

This saves the RGBA image that is from NvMedia space. Thanks.

I have tried to add dwSensorSerializer_initialize , but it still doesn’t work normal

the log shows :

Program Arguments:
--camera-type=ov10635
--csi-port=ab
--offscreen=0
--serialize=false
--serialize-bitrate=8000000
--serialize-framerate=30
--serialize-type=h264
--slave=0
--write-file=test.h264

nvrm_gpu: Bug 1781434 workaround enabled.
nvrm_gpu: Bug 1778448 workaround enabled.
nvrm_gpu: Bug 1780185 workaround enabled.
Initialize DriveWorks SDK v0.2.0
Release build with GNU 4.9.2 from v0.2.0-rc8-0-gf0835b8 against PDK v4.1.2.0
SDK: no resource mounted
SDK: Create NvMediaDevice
SDK: use EGL display as provided
SAL: identified board as DrivePX2-TegraA
SensorFactory::createSensor() -> camera.gmsl, camera-type=ov10635,csi-port=ab,offscreen=0,serialize=false,serialize-bitrate=8000000,serialize-framerate=30,serialize-type=h264,slave=0,write-file=test.h264,output-format=yuv+data
CameraGMSL: required FPS = 30, resolution = 1280x800
***** aurix state *****
 CAM_PWR_ON: 0x0
 TEGRA_GMSL: TEGRA B
 TEGRA_FPDL: TEGRA B
 TEGRA_A_HDMI: MXM
 TEGRA_B_HDMI: MXM
 TEGRA_PCI: TEGRA B
 FAN_STATE: UNKNOWN
***********************
***** aurix state *****
 CAM_PWR_ON: 0x1
 TEGRA_GMSL: UNKNOWN
 TEGRA_FPDL: UNKNOWN
 TEGRA_A_HDMI: UNKNOWN
 TEGRA_B_HDMI: UNKNOWN
 TEGRA_PCI: UNKNOWN
 FAN_STATE: UNKNOWN
***********************
Camera image with 1280x800 at 30 FPS

i have get the dwSensorSerializer_initialize result, it is zero ( means it is successful to init)

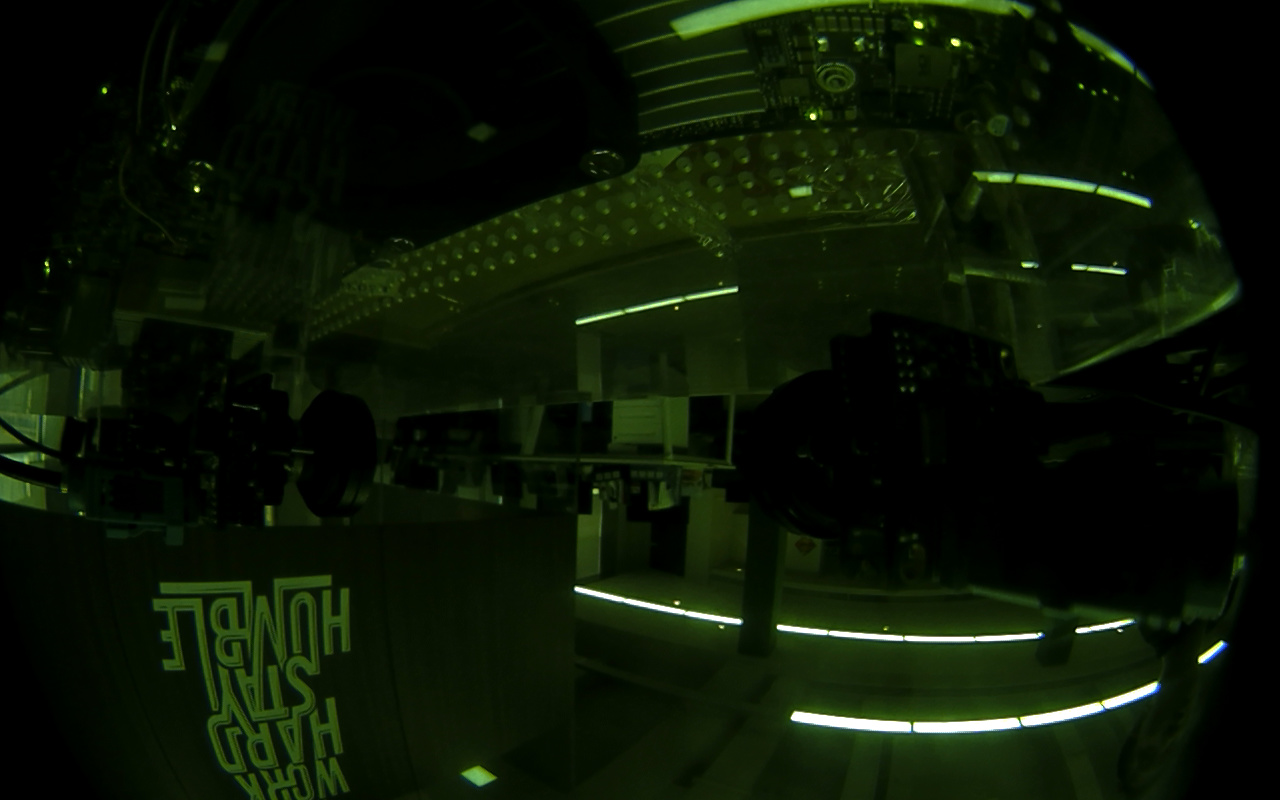

I also try your recommended method (use screenshot), but the png file of the origin code saved is partial green (the capture shows on screen by the code is normal)


today, i use your recommended method

dwImageGL* runSingleCameraPipeline(dwImageNvMedia *frameNVMrgba,
                                 dwSensorHandle_t cameraSensor,
                                 uint32_t sibling,
                                 dwImageFormatConverterHandle_t yuv2rgba,
                                 dwImageStreamerHandle_t nvm2gl)
{
    dwCameraFrameHandle_t frameHandle;
    dwImageNvMedia *frameNVMyuv = nullptr;
    static int save = 0;
    save ++;
    dwStatus result = DW_FAILURE;
    result = dwSensorCamera_readFrame(&frameHandle, sibling, 400000, cameraSensor);
    if (result != DW_SUCCESS) {
        std::cout << "readFrameNvMedia: " << dwGetStatusName(result) << std::endl;
        return nullptr;
    }

    result = dwSensorCamera_getImageNvMedia(&frameNVMyuv, DW_CAMERA_PROCESSED_IMAGE, frameHandle);
    if( result != DW_SUCCESS ){
        std::cout << "readFrameNvMedia: " << dwGetStatusName(result) << std::endl;

    }

    dwImageFormatConverter_copyConvertNvMedia(frameNVMrgba, frameNVMyuv, yuv2rgba);
    //dwSensorCamera_returnFrame(&frameHandle);

    //if (gTakeScreenshot)
    {
        NvMediaImageSurfaceMap surfaceMap;
        if (NvMediaImageLock(frameNVMyuv->img, NVMEDIA_IMAGE_ACCESS_READ, &surfaceMap) == NVMEDIA_STATUS_OK)
        {
            FILE* fp = fopen("test.yuv", "wb");
            if(fp)
            {
                if(save == 2000)
                {
                     fwrite((unsigned char*)surfaceMap.surface[0].mapping,
                       frameNVMyuv->prop.width*frameNVMyuv->prop.height*2*4,
                       1,
                       fp);
                    fclose(fp);
                }
            }
            NvMediaImageUnlock(frameNVMyuv->img);
            //std::cout << "SCREENSHOT TAKEN to " << fname << "\n";
        }
        else
        {
            std::cout << "CANNOT LOCK NVMEDIA IMAGE - NO SCREENSHOT\n";
        }
    }
    dwSensorCamera_returnFrame(&frameHandle);

    dwImageStreamer_postNvMedia(frameNVMrgba, nvm2gl);

    return(renderFrame(nvm2gl));
}

I get the 2000th frame aims to get the normal camera capture. and in fact, i get a right yuv file ( the y of the yuv file is right and uv is not really). do you know the associate between y field and uv field (the format in ddr)

yuv.tar.gz (3.75 MB)

Hello dota2_black,

Please see below to print out and see what is frameNVMyuv->prop.pxlFormat

Hope this helps. Thanks.

first thanks a lot of your help : we have successful to get yuv data (a sensor contain four cameras yuv data)

so , I want to ask a question that:
Now I only need to get one camera of sensor , but through this way , i only use others way to cut the yuv .

do you know the way to get one camera yuv data?

and i use dwSensorCamera_getImageCPU function recently, but it doesn’t work , the log is like below:
Driveworks exception thrown: DW_NOT_IMPLEMENTED: Camera::getImageNvMedia() - not implemented
do you have some ideas about it?

where i can find the real buf data of struct dwImageNvMedia (the only way i know is using NvMediaImageLock to get NvMediaImageSurfaceMap, but it usually means a sensor’s buf not a camera)

Hello dota2_black,

Thank you for your update.
Regarding this symptom, could you please file a bug for this issue via partners site? Thanks.
