How can Omniverse USD Composer read custom attributes on a model?

Omniverse Core Platform OpenUSD
1

I created a mask on my model in Houdini, and when I export it to Omniverse in USD format, the texture shows incorrectly. It turns out that my mask doesn’t work.

image1920×602 70 KB

I used this mask to apply different textures, and when I check in Omniverse, I found that the mask was also exported to the USD file.
However, my material in Omniverse can’t read this mask, so the texture doesn’t change.
image1920×1055 83.4 KB

Can you help me solve this issue? Thank you very much. T.T

2

You exported this to usd using our USD Exporter or Houdini’s ? Which ever way around, try the other one to compare.

3

Thanks for your reply.
I tried both, and they had the same result.

image929×1061 75.5 KB

When I checked this problem, I found something that might help. I used the [mtlxgeompropvalue] node to read ‘mask’, but it failed. However, when I removed this node and just used [mtlxmix] to control the two textures directly, it worked.
To make it easier to observe, I first created two shaders: one red and the other blue. I set the mix parameter to 0.5, and the model turned purple. When exported to Omniverse, the result was correct. You can even find and adjust the mix parameter in the material’s property panel.
image3707×799 180 KB

a
a3489×677 105 KB

b
b3491×635 97.1 KB

However, when I returned to the file that uses the [mtlxgeompropvalue] node, I found that the mix parameter had disappeared.
c
c3479×782 121 KB

image1058×1654 23.3 KB

What’s strange is that the mix node can be found in the material graph, but it doesn’t work.
d
d3121×1577 256 KB

Is it possible that Omniverse doesn’t support adjusting nodes like [mtlxgeompropvalue] or [mtlxgeomcolor] in Houdini yet?

4

Sure, that is very possible. Please do not assume that just because you have a material node in Houdini, it is automatically in Omniverse. But I am glad you have found a solution.

5

Actually, I still haven’t been able to solve this. I don’t know how to make my ‘mask’ work. @.@

6

Have you tried this? The “Blend” node? You can just add your base material, and then your mask

image970×495 61.8 KB

7

Hi @zuobbhaha
You did not specify in your original post what Kit and Graph Extension you’re using, but MaterialX authoring is not publicly supported yet in Omniverse. Is the graph that you show https://global.discourse-cdn.com/nvidia/original/4X/9/5/3/9532fdb42ad8734e4c4620e89c9f4aac5f9c36b5.jpeg, just what’s imported from Houdini? We have complete authoring available internally and it will be available to the public sometime early this year.

If you can, it would be helpful to attach a zip with your USD and any associated texture data for us to inspect what’s going on. However I can say we do support ND_geomprop_<*type> lookups. I’m not sure how ND_geomcolor_color3 works with your indexing without looking at your scene data.

@Richard3D MaterialX and MDL nodes are not compatible with each other. The new editor will isolate authoring and viewing so that graphs cannot be intermixed.

Regards
Frankie

8

Another thing the team pointed out is that the mtlmix node you have looks like it’s for mixing floats. Not surface shaders. There’s a different ND_mix_surfaceshader node for that.

9

Thank you for your reply.
I didn’t use any Kit. I’m just using USD Composer, and the Graph Extension I’m working with is the MDL Material Graph in Composer.
$HIP/tex/gun2/Metallic..png
$HIP/tex/gun2/Metallic..png
This graph displays the same nodes as those in Houdini’s Material Library.
$HIP/tex/gun2/Metallic..png
I’m uploading my USD and tex data here, I made them three bucause the size is over 100MB.
geo.zip (52.3 MB)
gun2.zip (74.8 MB)
rusted_gun.zip (37.2 MB)
In ‘just_mix’, I didn’t use geomvalue and the mix can be adjusted in property panel, however the other one can’t.
Thank you very much.

10

I think what we were asking it what version of USD Composer. Maybe you are using an old version. Are you using 2023.2.5 from the Launcher? If so that would be old. The new version is 106.5 from our GitHub Page. GitHub - NVIDIA-Omniverse/kit-app-template: Omniverse Kit App Template

11

Hello,

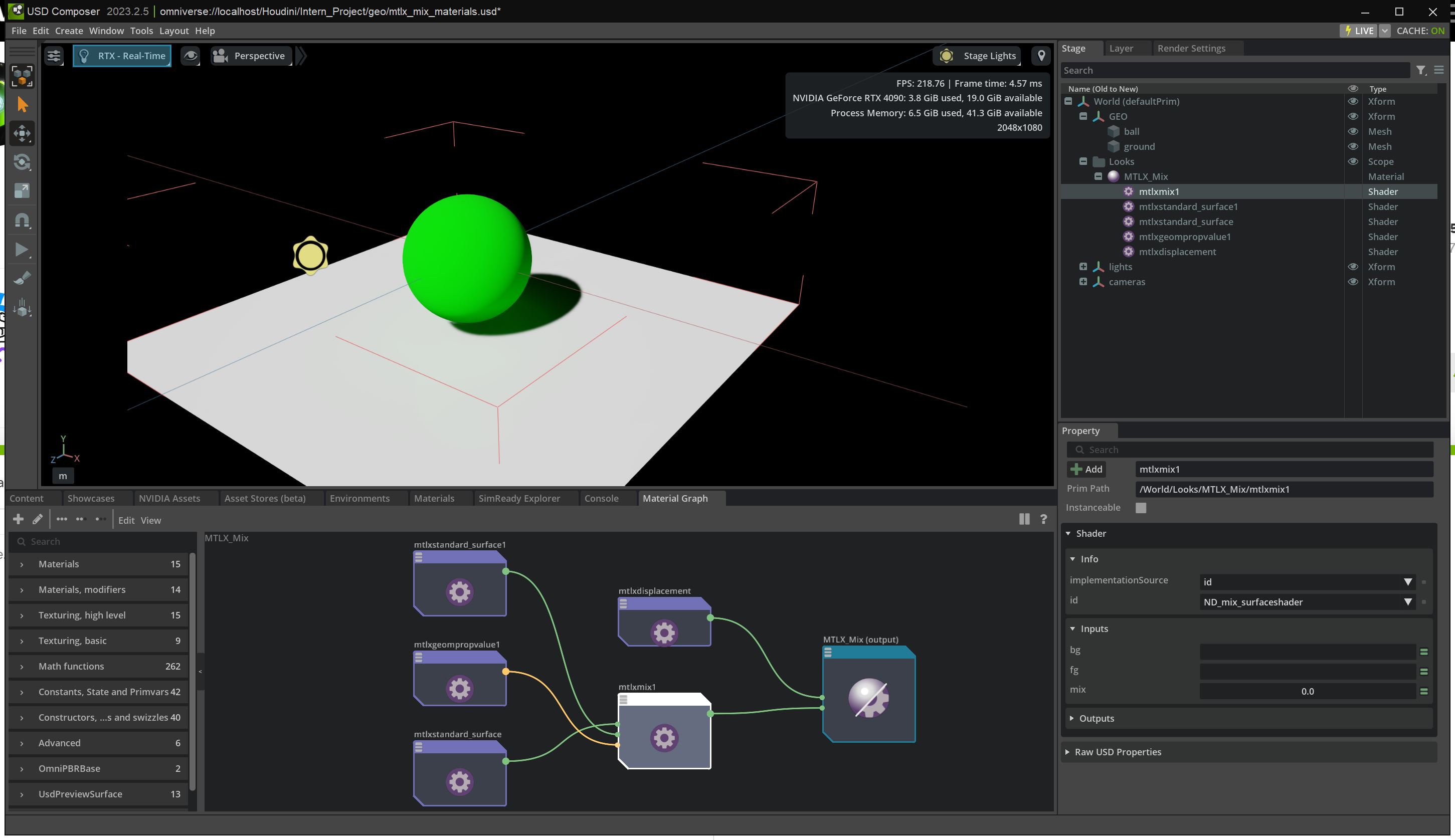

I created a quick demo file that shows the use of the geomprop node to look up a float value called “mask”
Im including the hip file the the usd file.

mtlx_mix_example.zip (99.8 KB)

12

Thank you very much. I’m using 2023.2.5 version of USD Composer.0.0

13

Thank you very much.
I will check on this shortly.

14

Right… so that is really old now. Please update.

  1. Download “git” from Git - Downloads
  2. Download "git Large File Storage from https://git-lfs.com/
  3. Start a windows command console by using running cmd from the Windows Start menu
  4. run cd\
  5. run git clone https://github.com/NVIDIA-Omniverse/kit-app-template.git
  6. run cd kit-app-template
  7. run repo template new
  8. run repo build
  9. run repo launch -d
15

I’m sorry when I run “cd kit-app-template” it says the system can’t find specified path.
I downloaded kit-app-template-main.zip and unziped it. I keep these two both in my C drive download folder.

16

Maybe it’s really a problem with my Composer version. I can’t see the mask here.

mask
mask2902×1676 261 KB

17

Ok you downloaded it from GitHub, which is “ok”. But better still, forget the download and on number 3) go to the windows command CMD and type in git clone https://github.com/NVIDIA-Omniverse/kit-app-template.git

18

See above, I have clarified the instructions.

19

kit
kit1601×1397 342 KB

Thank you for your guidance. Does it mean I have installed it successfully? I still have Composer 2023.2.5 in my Omniverse Launcher.
launcher
launcher2304×1394 238 KB

20

Ok you have missed a step. Slow down :-) You have made a new template, but not BUILD IT. Step 2 here.

  1. run repo template new
    2. run repo build
  2. run repo launch -d
