Bootloader dts bugs

Robotics & Edge Computing Jetson Systems Jetson AGX Orin
,
1

hi，when I change the file : bootloader/generic/BCT/tegra234-mb1-bct-pinmux-p3701-0000.dtsi
the linux kernel reboot auto,and there is some PCIE bus timeout error. how can I change the setting ,and verify the setting to fix the error.

**

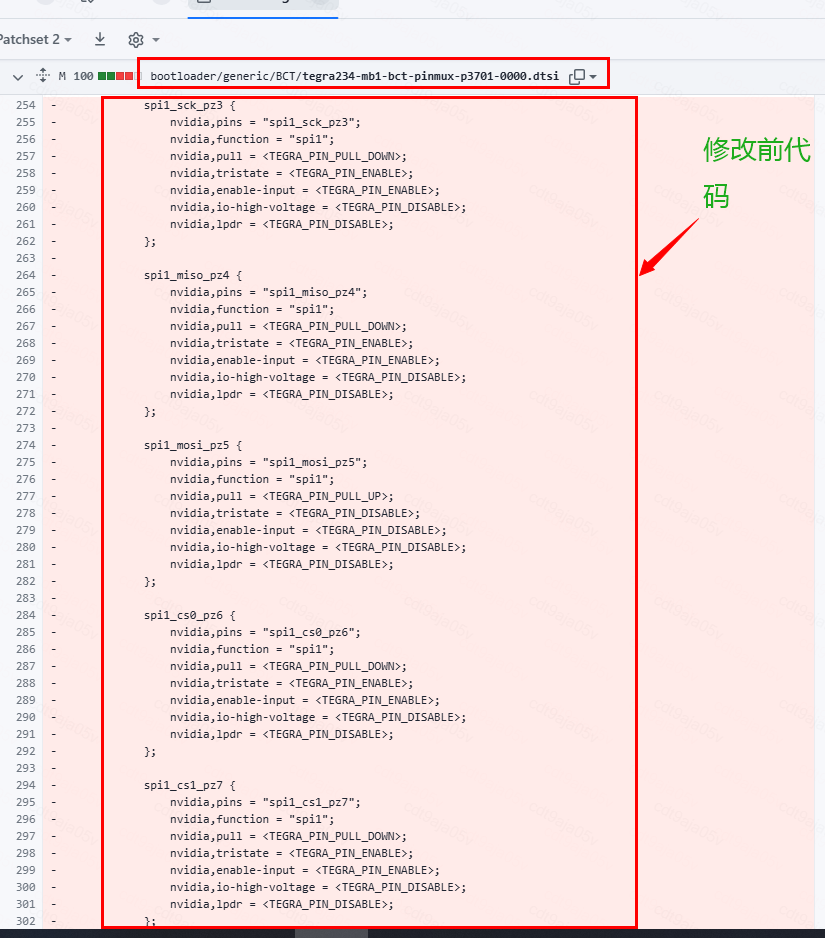

the dts code before change：**

image825×938 102 KB

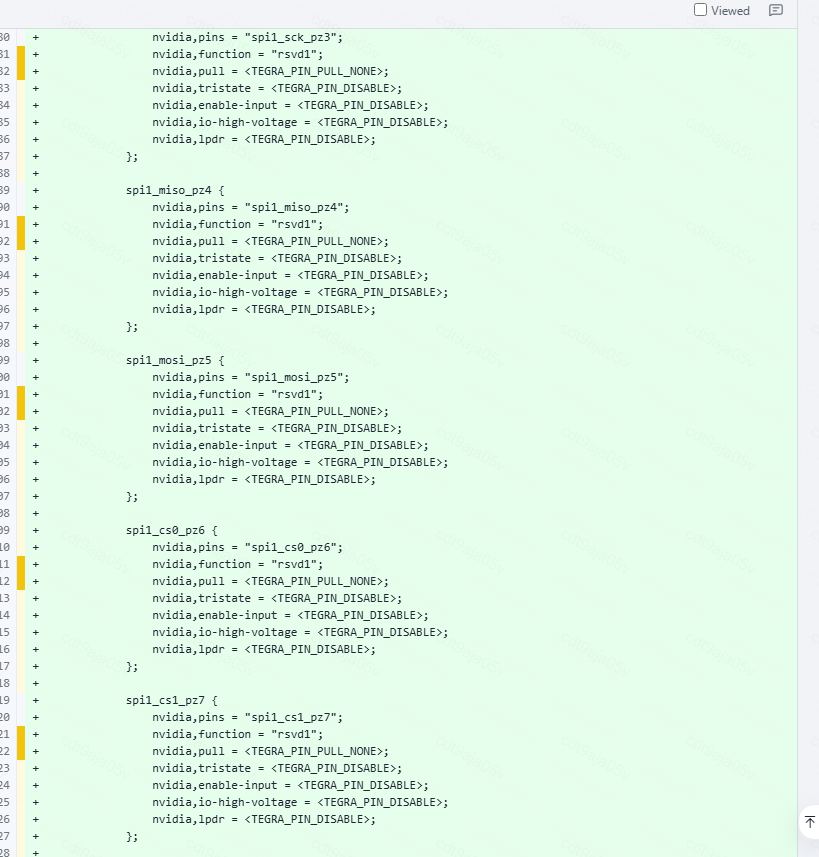

the dts code after changed：

image819×857 80.4 KB

2

*** Please note that this reply is generated by LLM automatically ***

Based on the provided context, it appears that you are working with the Jetson AGX Orin device and have modified the bootloader/generic/BCT file, which contains the Device Tree Blob (DTB) configuration. You have observed a change in the size of the DTB code before and after the modification.

To provide a comprehensive answer, let’s break down the information:

  1. Device Tree Blob (DTB): The DTB is a binary representation of the device tree, which is a data structure that describes the hardware components of a system. The DTB is used by the bootloader to configure the hardware and load the operating system.
  2. bootloader/generic/BCT: The BCT file is a part of the bootloader configuration, and it contains the DTB configuration for the Jetson AGX Orin device.
  3. Modification: You have modified the bootloader/generic/BCT file, which has resulted in a change in the size of the DTB code.

Comparing the sizes before and after the modification:

  • Before modification: 825938 bytes (102 KB)
  • After modification: 819857 bytes (804 KB)

The size reduction of approximately 11 KB (1.3%) suggests that the modification has removed or optimized some parts of the DTB configuration.

To provide a more detailed answer, I would need to know the specific changes you made to the bootloader/generic/BCT file. However, based on the information provided, it appears that the modification has resulted in a smaller DTB code size, which could potentially improve the boot time or reduce the memory footprint of the device.

If you could provide more information about the changes you made to the bootloader/generic/BCT file, I may be able to provide a more detailed explanation of the effects of the modification.

*** Please give the thumbs up if you get answers you like. Or provide feedback to help us improve the answer. ***

5

Which Jetpack release are you using here? And what board are you doing the test here?

6

PCIE_err_log
PCIE_err_log1274×799 59 KB

7

we use the Jetpack6.0,and in fact ,we use the board that designed by our company.On the PCB board wo plug a Orin module on it.so we must change the dtsi file to adapt to the PCB.As you see the patch I uploaded,we change the GPIO’s function from spi to GPIO,but after that,there occur a crash ,a bus err caused by pcie bus as you can see.

8

how can you find the diff of the dtb size,actually I did not think of the diff of that,

the code after change:

/*This dtsi file was generated by jetson_agx_orin.xlsm Revision: 1.9 /
/

  • SPDX-FileCopyrightText: Copyright (c) 2022 NVIDIA CORPORATION & AFFILIATES. All rights reserved.
  • SPDX-License-Identifier: BSD-3-Clause
  • Redistribution and use in source and binary forms, with or without
  • modification, are permitted provided that the following conditions are met:
    1. Redistributions of source code must retain the above copyright notice, this
  • list of conditions and the following disclaimer.
    1. Redistributions in binary form must reproduce the above copyright notice,
  • this list of conditions and the following disclaimer in the documentation
  • and/or other materials provided with the distribution.
    1. Neither the name of the copyright holder nor the names of its
  • contributors may be used to endorse or promote products derived from
  • this software without specific prior written permission.
  • THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ‘AS IS’
  • AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
  • IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
  • DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE
  • FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
  • DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
  • SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
  • CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
  • OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
  • OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
    */

include “tegra234-gpio.h”

/ {
gpio@2200000 {
gpio-init-names = “default”;
gpio-init-0 = <&gpio_main_default>;

	gpio_main_default: default {
		gpio-input = <
			TEGRA234_MAIN_GPIO(B, 0)
			TEGRA234_MAIN_GPIO(Z, 1)
			TEGRA234_MAIN_GPIO(Z, 2)
			TEGRA234_MAIN_GPIO(P, 4)
			TEGRA234_MAIN_GPIO(P, 6)
			TEGRA234_MAIN_GPIO(Q, 5)
			TEGRA234_MAIN_GPIO(M, 7)
			TEGRA234_MAIN_GPIO(N, 2)
			TEGRA234_MAIN_GPIO(G, 0)
			TEGRA234_MAIN_GPIO(G, 1)
			TEGRA234_MAIN_GPIO(G, 2)
			TEGRA234_MAIN_GPIO(G, 4)
			TEGRA234_MAIN_GPIO(H, 0)
			TEGRA234_MAIN_GPIO(H, 1)
			TEGRA234_MAIN_GPIO(AC, 3)
			TEGRA234_MAIN_GPIO(AC, 4)
			TEGRA234_MAIN_GPIO(AD, 0)
			TEGRA234_MAIN_GPIO(AD, 1)
			TEGRA234_MAIN_GPIO(A, 4)
			TEGRA234_MAIN_GPIO(A, 5)
			TEGRA234_MAIN_GPIO(A, 6)
			TEGRA234_MAIN_GPIO(A, 7)
			>;
		gpio-output-low = <
			TEGRA234_MAIN_GPIO(X, 0)
			TEGRA234_MAIN_GPIO(X, 1)
			TEGRA234_MAIN_GPIO(Y, 7)
			TEGRA234_MAIN_GPIO(Z, 3)
			TEGRA234_MAIN_GPIO(Z, 4)
			TEGRA234_MAIN_GPIO(Z, 5)
			TEGRA234_MAIN_GPIO(Z, 6)
			TEGRA234_MAIN_GPIO(Z, 7)
			TEGRA234_MAIN_GPIO(P, 0)
			TEGRA234_MAIN_GPIO(P, 1)
			TEGRA234_MAIN_GPIO(Q, 4)
			TEGRA234_MAIN_GPIO(R, 1)
			TEGRA234_MAIN_GPIO(H, 3)
			TEGRA234_MAIN_GPIO(H, 4)
			TEGRA234_MAIN_GPIO(H, 6)
			TEGRA234_MAIN_GPIO(H, 7)
			TEGRA234_MAIN_GPIO(I, 0)
			TEGRA234_MAIN_GPIO(I, 1)
			TEGRA234_MAIN_GPIO(I, 2)
			TEGRA234_MAIN_GPIO(I, 5)
			TEGRA234_MAIN_GPIO(AC, 0)
			TEGRA234_MAIN_GPIO(AC, 1)
			TEGRA234_MAIN_GPIO(AC, 2)
			TEGRA234_MAIN_GPIO(AC, 5)
			TEGRA234_MAIN_GPIO(AC, 6)
			TEGRA234_MAIN_GPIO(AC, 7)
			TEGRA234_MAIN_GPIO(AD, 2)
			TEGRA234_MAIN_GPIO(AD, 3)
			>;
		gpio-output-high = <
			TEGRA234_MAIN_GPIO(Q, 6)
			TEGRA234_MAIN_GPIO(G, 5)
			TEGRA234_MAIN_GPIO(K, 5)
			TEGRA234_MAIN_GPIO(A, 0)
			TEGRA234_MAIN_GPIO(A, 3)
			>;
	};
};
gpio@c2f0000 {
	gpio-init-names = "default";
	gpio-init-0 = <&gpio_aon_default>;

	gpio_aon_default: default {
		gpio-input = <
			TEGRA234_AON_GPIO(EE, 4)
			TEGRA234_AON_GPIO(CC, 0)
			TEGRA234_AON_GPIO(CC, 1)
			TEGRA234_AON_GPIO(CC, 2)
			TEGRA234_AON_GPIO(CC, 3)
			>;
		gpio-output-low = <
			>;
		gpio-output-high = <
			>;
	};
};
gpio@9250000 {
	gpio-init-names = "default";
	gpio-init-0 = <&gpio_fsi_default>;

	gpio_fsi_default: default {
		gpio-input = <
			>;
		gpio-output-low = <
			>;
		gpio-output-high = <
			>;
	};
};
